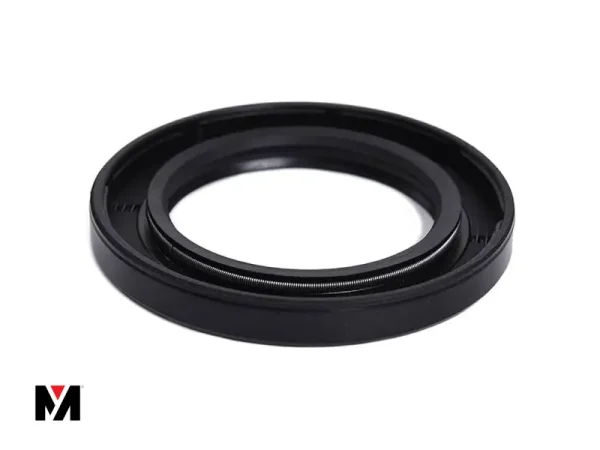

کاسه نمد NBR WAS 35X45X7 Type AS
کاسه نمد دولبه/Dichtomatik
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 35 |
| Outer Diameter | 45 |
| Height | 7 |
| DIN 3760 | 35x45x7 |
| Dimensions | 35 x 45 x 7 |
